5.4.4.6 Invoke Smart Contract API Public Key Upload Mode
When the off-BSN system invokes the node gateway, it should follow the API descriptions to add the corresponding parameters. After invoking the node gateway, the node gateway returns the execution result of the smart contract. In the transaction of Public Key Upload mode, the private key of the transaction on the chain is generated and saved by the user. Then the client performs the assembly and signature of the data locally. The signed data is uploaded to the node gateway, which forwards the data to the corresponding blockchain node to initiate the transaction request. Data assembly in this pattern requires information such as the contract ABI, which is compiled when developing the contract, and the contract address, which is available on the application details page. In the SDK of the gateway, the assembly method of the data on the link has been implemented, which can be directly called.
1. Interface address:
https://PCNGatewayAddress/api/fiscobcos/v1/node/trans

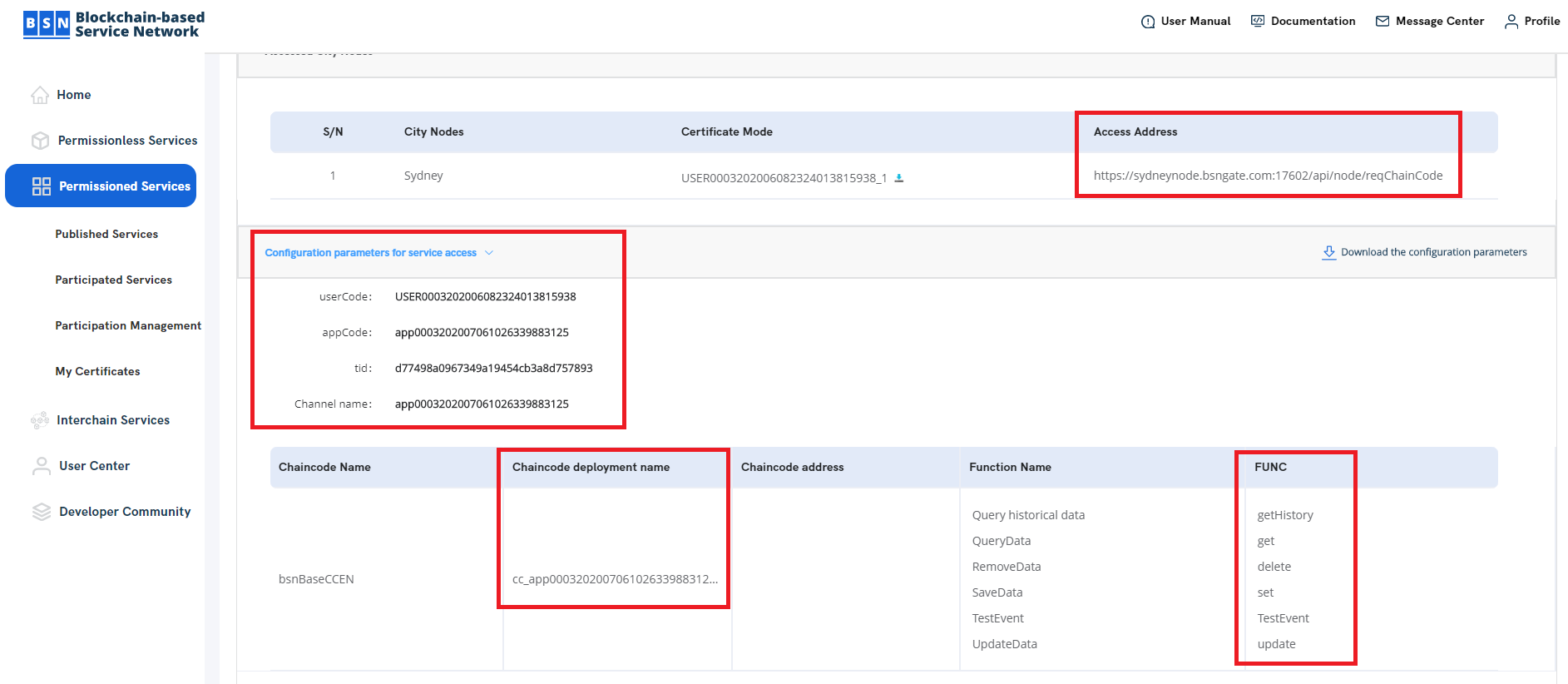

Note: After a participant has successfully joined in a FISCO DApp service, the participant can view and download the DApp’s configuration parameters which are used for off-BSN systems to connect to this DApp’s smart contracts, including the PCN gateway address and Dapp access keys, as shown below:
2. Call Method: POST
3. Signature algorithm: required and refer to Section 5.4.4.1
4. Call parameters
| No. | Field name | Field | Type | Required | Remarks |
|---|---|---|---|---|---|
| 1 | Header | header | Map | Y | |
| 2 | Body | body | Map | Y | |
| 3 | Signature Value | mac | String | Y | |
| header | |||||
| 1 | user unique ID | userCode | String | Y | |
| 2 | DApp unique ID | appCode | String | Y | |
| Body | |||||
| 1 | Smart Contract Name | contractName | String | Y | |
| 2 | Transaction Data | transData | String | Y | |
| 3 | Contract address | contractAddress | String | N | |
| 4 | Contract ABI | contractAbi | String | N |
Example:
{"header":{"userCode":"USER0001202006042321579692440","appCode":"app0001202006042323057101002","tId":""},"mac":"MEUCIQCrjIeRVSt1uwFFGkr37bVM8pF0JgAWb40mKEBc5HbpjgIgEzXRIgG+Q7obwuD2MY4EHo9sIsI1W71M+aQKOfAN3wU=","body":{"contractName":"BsnBaseContractk1","transData":"0xf9016fa008d8ebcb4b1f8205fd7883aa3ce9b9c844424070e55a3af6a5da5d7ee97d287385051f4d5c0083419ce07794866aefc204b8f8fdc3e45b908fd43d76667d7f7680b8e4ebf3b24f0000000000000000000000000000000000000000000000000000000000000060000000000000000000000000000000000000000000000000000000000000000500000000000000000000000000000000000000000000000000000000000000a00000000000000000000000000000000000000000000000000000000000000005733036303400000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000026161000000000000000000000000000000000000000000000000000000000000018187801ba0324efc9e17f1d31d95535c5103083560560f836931945d03fb69acb6fd2046b5a05fa6f574f83b3b753c9fe40649a08c2a497af1cd804e08fed2b153af20267f23", "contractAddress":"0xe2d0d414d436d8be9d52e2f40e6dd24a63faa638","contractAbi":"Contract ABI"}}
5. Response parameters
| No. | Field name | Field | Type | Required | Remarks |
|---|---|---|---|---|---|
| 1 | Header | header | Map | Y | |
| 2 | Body | body | Map | Y | |
| 3 | Signature Value | mac | String | Y | |
| header | |||||
| 1 | Response ID | code | int | Y | 0: authentication successful -1: authentication failed |
| 2 | Response Message | msg | String | N | if code=0 then can be null |
| Body | |||||
| 1 | Invoke Type | constant | Bool | N | |
| 2 | Query information | queryInfo | String | N | If Constant is true, this field has value. |
| 3 | Transaction hash | txId | string | N | If Constant is false, this field has value and is valid. |
| 4 | Block HASH | blockHash | String | N | If Constant is false, this field has value and is valid. |
| 5 | Block Number | blockNumber | Int | N | If Constant is false, this field has value and is valid. |
| 6 | Gas Used | gasUsed | Int | N | If Constant is false, this field has value and is valid. |
| 7 | Transaction Status | status | String | N | If Constant is false, this field has value and is valid. 0x0 means transaction successful, status value refer to transaction receipt status in 7.3.9 |
| 8 | From account | from | String | N | If Constant is false, this field has value and is valid. |
| 9 | To account | To | String | N | If Constant is false, this field has value and is valid. |
| 10 | Input | input | String | N | If Constant is false, this field has value and is valid. |
| 11 | Ouput | output | String | N | If Constant is false, this field has value and is valid. |
